OM13055UL
LPC812 32-bit ARM Cortex M0+ MCUs Development Board
-
RoHS 10 Compliant -
Tariff Charges

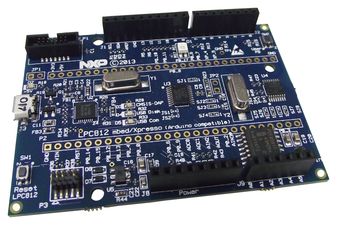

The OM13055,598 is a LPCXpresso812-MAX development board with LPC812 Cortex-M0+ microcontroller (32bit). It is designed for users to get started with their own project easily. LPCXpresso is a low cost development platform which consists of a simplified Eclipse based IDE and low cost target boards with an attached JTAG debugger. It is an end to end solution for embedded engineers to develop their applications from initial evaluation to final production. LPCXpresso812-MAX includes standard 10 pin JTAG/SWD connector and analogue/digital expansion headers makes it highly extensible platform. The LPCXpresso/mbed and Arduino UNO expansion connectors give simple access to a wide range of expansion boards.
- LPCXpresso Eclipse based IDE and GNU C/C++ toolchain (available in free & pro versions)
- Works with Keil, IAR and other toolchains with CMSIS-DAP support
- Integrated JTAG debugger can be used to debug external target
- Embedded artists 14 pin expansion connector
- Tri-colour LED
- Onboard ADC
- Reset and user interrupt buttons for easy testing of software functionality
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| No | ||
| Microcontroller Tools | ||
| No | ||
| No | ||
| LPC812 Board | ||
| Development Board |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8473301180 |
| Schedule B: | 8473300002 |
Factory Lead Time:
