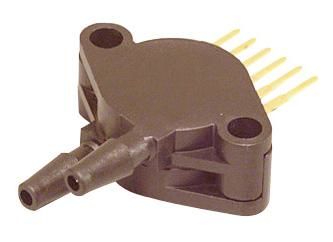

MPX5500DP
Pressure Sensor, Differential, 0 kPa, 500 kPa, 4.75 V, 5.25 V, SIP
-
RoHS 10 Compliant -
Tariff Charges
The MPX5500DP is a dual-port integrated silicon Pressure Sensor features on-chip signal conditioned, temperature compensated and calibrated. The MPX5500 series piezoresistive transducer is a state-of-the-art monolithic silicon pressure sensor designed for a wide range of applications, but particularly those employing a microcontroller or microprocessor with A/D inputs. This patented, single element transducer combines advanced micromachining techniques, thin-film metallization and bipolar processing to provide an accurate, high level analogue output signal that is proportional to the applied pressure. Ideally suited for microprocessor or microcontroller-based systems.
- Patented silicon shear stress strain gauge
- Durable epoxy unibody element
- Available in differential configuration
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| ± 2.5% % | ||
| Air | ||
| 6 | ||
| 500 kPa | ||
| 0 kPa | ||
| 125 °C | ||
| -40 °C | ||
| Dual Axial Barbed, Same Side | ||
| Differential | ||
| MPX5500 Series | ||
| SIP | ||
| Through Hole | ||
| Analogue | ||
| 5.25 V | ||
| 4.75 V |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8542390070 |
| Schedule B: | 8542390060 |
Factory Lead Time:
