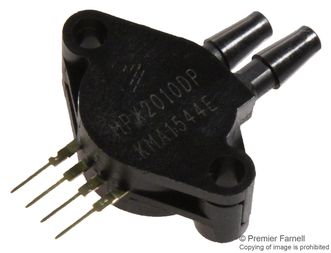

MPX2010DP
Pressure Sensor, Differential, 0 kPa, 10 kPa, 10 V, 16 V, SIP
Click image to enlarge
Manufacturer:NXP
Product Category:
Sensors & Transducers, Pressure Sensors & Transducers, Board Mount Pressure Sensors
Avnet Manufacturer Part #: MPX2010DP
Secondary Manufacturer Part#: 07F9816
-
RoHS 10 Compliant -
Tariff Charges
The MPX2010DP is a differential, dual port silicon pressure sensor in 4 pin SIP package. This piezoresistive pressure sensor provides very accurate and linear voltage output directly proportional to applied pressure. It includes on-chip integrated strain gauge and thin film resistor network. The sensor is laser trimmed for precise span, offset calibration and temperature compensation.
- On-chip temperature compensated and calibrated
- Pressure range from 0KPa to 10KPa
- 25mV full scale voltage
- Temperature compensated over 0°C to 85°C
- Ratiometric to supply voltage
- Sensitivity of 2.5mV/KPa
- Response time of 1ms
- Pressure hysteresis of ±0.1%VFSS
- Supply voltage range from 10VDC to 16VDC
- Operating temperature range from -40°C to 125°C
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 4 | ||
| 10 | ||
| 0 | ||
| 125 °C | ||
| -40 °C | ||
| Dual Barbed Axial Port | ||
| Differential | ||
| MPX2010 Series | ||
| SIP | ||
| Through Hole | ||
| Analog | ||
| 16 | ||
| 1 |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8542390050 |
| Schedule B: | 8542390060 |
