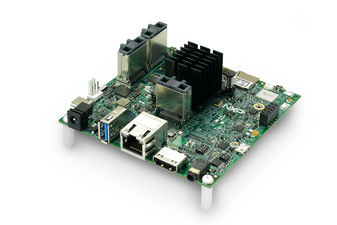

MCIMX8M-EVK
Evaluation Kit for the i.MX 8M Applications Processor
-
RoHS 10 Compliant -
Tariff Charges
The NXP i.MX 8MQuad Evaluation Kit (EVK) provides a platform for rapid evaluation of the i.MX 8MQuad, i.MX 8MDual and i.MX 8QuadLite Applications Processors, utilizing 2 to 4x Cortex-A53s and 1x Cortex-M4 cores. It brings High-Performance with Low Power, Flexible options of Memory and High-Speed Interfaces as well as Industry-Leading Audio and Video capabilities.
These boards enables HDMI out for simple out-of-the-box bring up. Presents LPDDR4, eMMC, QSPI and SDMicro memory options, 10/100/1000 Ethernet port, USB 3.0 connectors and PCIe Interface high-speed interfaces. For Audio and Video evaluations it brings a HDMI 2.0a Type-A and MIPI-DSI connectors, as well as 32-bit Audio samples with up to 768kHz sampling rate, an audio interfaces expansion connector and a headphone 3.5mm audio jack.
- Processer
- i.MX 8MQuad
- 4x Arm Cortex-A53 @ 1.5GHz
- 1MB L2 cache
- Arm Cortex-M4 @ 266MHz
- Power Management
- NXP PMIC PF4210
- Memory
- LPDDR4 x32 @3200MT w/ 4GB
- eMMC 5.0 w/ 16GB
- MicroSD connector
- QSPI w/ 256Gb
- Display/Camera Connectors
- HDMI 2.0a Type-A connector
- MIPI-CSI Camera mini-SAS connector
- MIPI-DSI Display mini-SAS connector
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Yes | ||
| Processor Tools | ||
| 256GB QSPI | ||
| HDMI|MIPI CSI|MIPI DSI | ||
| Yes | ||
| No | ||
| Ethernet|QSPI|PCIe|UART|USB | ||
| 4 GB | ||
| LPDDR4 | ||
| 2x PCIex1 | ||
| Evaluation Kit | ||
| USB3.0 | ||
| Bluetooth|WIFI|802.11 a/b/g/n/ac |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | 5A992.C |
| HTSN: | 8471500150 |
| Schedule B: | 8471500150 |
