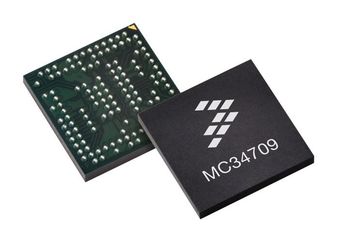

MC34709VK

The 34709 is the Power Management Integrated Circuit (PMIC) designed primarily for use with the Freescale i.MX50 and i.MX53 families. It offers a low cost solution targeting embedded applications that do not require a battery charger. However, it can be easily combined with an external charger, allowing flexibility for either single or multi-cell Li-Ion battery configurations. It supports both consumer and industrial applications with a single 130-pin 8x8 MAPBGA 0.5 mm pitch package that is easily routable in low cost board designs.

Power Supplies

• Six multi-modebuck regulators
  • Two single/dual-phase buck regulators
  • Three single-phase buck regulators
  • Up to six independent outputs
  • PFM/PWM operation mode
  • Dynamic voltage scaling
• 5 V boost regulator
  • Support for USB physical layer on i.MX processor (USB PHY)
• Eight LDO regulators
  • Two with selectable internal or external pass devices
  • Four with embedded pass devices
  • One with an external PNP device
  • Voltage reference for DDR memory with internal PMOS device
• Hardware programmable power-up sequence

10-Bit ADC Core

• Seven general purpose ADC channels
• Dedicated channels for monitoring die temperature and coin cell voltage
• Resistive touchscreen interface

Auxiliary Circuits

• General purpose I/Os
• PWM outputs

Clocking and Oscillators

• Real time
