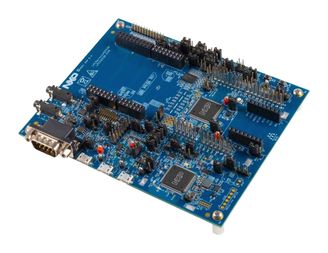

LPC5536-EVK

LPC55S36-EVK board is a powerful and flexible, evaluation and development platform for NXP LPC55S36/LPC5536 microcontrollers (MCUs). It belongs to the LPCXpresso family of boards — boards for NXP LPC MCUs based on Arm® Cortex®-M cores. The board is compatible with the Arduino UNO R3 and Mikroe click boards. It can be used with a wide range of development tools, including NXP MCUXpresso IDE, Keil µVision® and IAR Embedded Workbench. The board is lead-free and RoHS-compliant. The LPC55S36-EVK Rev. C board uses an on-board debug probe, known as MCU-Link, for debugging the LPC5536 MCU. The MCU-Link debug probe is based on another MCU, LPC55S69.

• LPC5536 MCU with 32bit Arm Cortex-M33 core running at a frequency of up to 150MHz
• USB micro-AB connector
• USART, I2C, I2S, HSSPI, CAN, I3C interface
• 512Mbit octal serial NOR flash memory
• On-board DMIC and an external DMIC connector
• mikroBUS socket with two 1x8 position receptacles
• Two Arduino UNO compatible sockets, each with four receptacles
• Two crystals (16MHz and 32.768KHz) provide clocks to the target MCU
