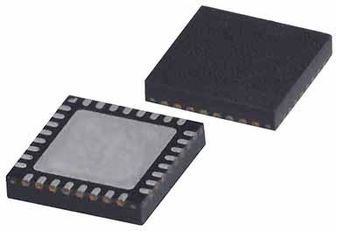

LPC1343FHN33,551

The LPC1311/13/42/43 are ARM Cortex-M3 based microcontrollers for embedded applications featuring a high level of integration and low power consumption. The ARM Cortex-M3 is a next generation core that offers system enhancements such as enhanced debug features and a higher level of support block integration. The LPC1311/13/42/43 operate at CPU frequencies of up to 72 MHz. The ARM Cortex-M3 CPU incorporates a 3-stage pipeline and uses a Harvard architecture with separate local instruction and data buses as well as a third bus for peripherals. The ARM Cortex-M3 CPU also includes an internal prefetch unit that supports speculative branching. The peripheral complement of the LPC1311/13/42/43 includes up to 32 kB of flash memory, up to 8 kB of data memory, USB Device (LPC1342/43 only), one Fast-mode Plus I 2C-bus interface, one UART, four general purpose timers, and up to 42 general purpose I/O pins.

• ARM Cortex-M3 processor, running at frequencies of up to 72 MHz.
• ARM Cortex-M3 built-in Nested Vectored Interrupt Controller (NVIC).
• 32 kB (LPC1343/13)/16 kB (LPC1342)/8 kB (LPC1311) on-chip flash programming memory.
• 8 kB (LPC1343/13)/4 kB (LPC1342/11) SRAM.
• In-System Programming (ISP) and In-Application Programming (IAP) via on-chip bootloader software.
• Selectable boot-up: UART or USB (USB on LPC1342/43 only).
• On LPC1342/43: USB MSC and HID on-chip drivers.
• Serial interfaces:
  • USB 2.0 full-speed device controller with on-chip PHY for device (LPC1342/43 only).
  • UART with fractional baud rate generation, modem, internal FIFO, and RS-485/EIA-485 support.
  • SSP controller with FIFO and multi-protocol capabilities.
  • Additional SSP controller on LPC1313FBD48/01.
  • I2C-bus interface supporting full I2C-bus specification and Fast-mode Plus with a data rate of 1 Mbit/s with multiple address recogni
