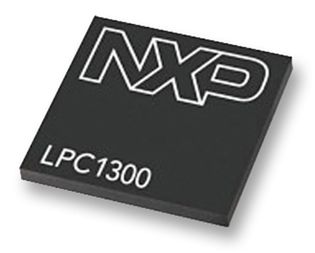

LPC1311FHN33,551

The LPC1343FBD48 is a ARM Cortex-M3 based microcontroller for embedded applications featuring a high level of integration and low power consumption. The ARM Cortex-M3 is a next generation core that offers system enhancements such as enhanced debug features and a higher level of support block integration. The ARM Cortex-M3 CPU incorporates a 3-stage pipeline and uses a Harvard architecture with separate local instruction and data buses as well as a third bus for peripherals. The ARM Cortex-M3 CPU also includes an internal prefetch unit that supports speculative branching.

• 10-bit ADC with input multiplexing among 8 pins
• ARM Cortex-M3 built-in Nested Vectored Interrupt Controller (NVIC)
• ARM Cortex-M3 processor, running at frequencies of up to 72 MHz
• Code Read Protection (CRP) with different security levels
• GPIO pins can be used as edge and level sensitive interrupt sources
• High-current output driver (20 mA) on one pin
• High-current sink drivers (20 mA) on two I²C-bus pins in Fast-mode Plus
• In-Application Programming (IAP)
• In-System Programming (ISP)
• Integrated oscillator with an operating range of 1 MHz to 25 MHz
• Power-On Reset (POR)
• Programmable watchdog oscillator with a frequency range of 7.8 kHz to 1.8 MHz
• Serial Wire Debug and Serial Wire Trace port
• Single power supply (2.0 V to 3.6 V)
• Three reduced power modes: Sleep, Deep-sleep, and Deep power-down
• Unique device serial number for identification
• USB 2.0 full-speed
