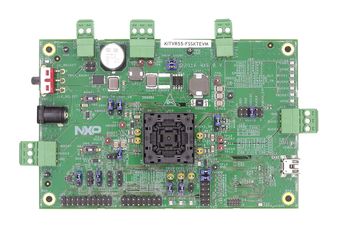

KITVR55-FSSKTEVM

KITVR55-FSSKTEVM is a VR5500 safety SBC programming board. KITVR55-FSSKTEVM provides easy customer configuration of the devices thanks to a QFN56 socket. Devices can be easily placed on socket, fused and then soldered on customer prototype board. It's get

• VBAT power supply connectors (jack and Phoenix)
• VPRE output 3.3V/ 3.8V/ 4.1V/ 5V
• VBUCK1/2 in a standalone or multi-phase mode
• VBUCK3, VBOOST 5V or 5.74V, up to 800mA
• LDO1 and LDO2, from 1.1 V to 5V, up to 400mA
