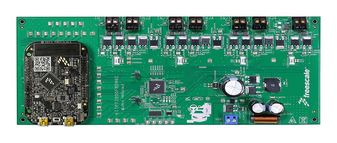

KITPT2000FRDM6C

The KITPT2000FRDM6C Evaluation Board (EVB) is allows you to exercise all the functions of the PT2000 direct injection pre-driver circuit. A PC communicates through USB to the EVB through a freedom board FRDM-KL25Z used as a SPIdongle. The Freescale SPIGen (version 7.0 and above) program provides the user interface to the PT2000 SPI port and allows the user to program the Code RAM and Data Registers, send commands to the IC and receive status from the IC.

KITPT2000FRDM6C

• PT2000 Programmable Solenoid Pre-Driver Circuit
• FRDM-KL25Z for SPI communcation and IO control
• Power-conditioning circuitry
• External MOSFETs used to control 4/6 injectorsand 1 fuel pump
• +12 V VBAT supply provides the power to the two internal voltage regulators, VCCP and VCCP2.5
• DC/DC control

PT2000

• Battery voltage range, 5.5 < vbatt=">< 72="">
• Pre-drive operating voltage up to 72 V
• High side/low side pre-drive PWM capability up to 100 KHz
• All pre-drivers have four selectable slew rates
• Twelve selectable, pre-defined VDS/VSRC monitoring thresholds
• Encryption for microcode protection
• Integrated 1.0 MHz back-up clock
• End of injection detection
