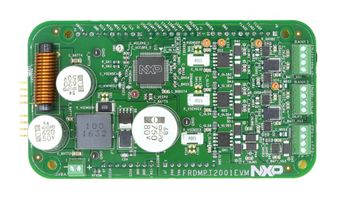

FRDMPT2001EVM
Evaluation Board, PT2001, Programmable Solenoid Controller, Motor Driver
Click image to enlarge
![FRDMPT2001EVM]()
Manufacturer:NXP
Product Category:
Kits & Tools, Evaluation & Development Kits
Avnet Manufacturer Part #: FRDMPT2001EVM
Secondary Manufacturer Part#: FRDMPT2001EVM
-
RoHS 10 Compliant -
Tariff Charges
FRDMPT2001EVM is a PT2001 evaluation board that serves as the interface between the PT2001 and the components it controls. The board contains a commercial version of the PT2001 and connectors for up to four fuel injectors, two fuel pumps and a DC/DC converter.
- PT2001 programmable gate driver for solenoid control
- Power conditioning circuitry
- 12V to 36V VSUPP power to the PT2001
- PT2001 direct injection pre-driver integrated circuit
- External MOSFETs
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| No | ||
| Power Management Tools | ||
| No | ||
| No | ||
| Evaluation Board |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | NO RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8471500150 |
| Schedule B: | 8471500150 |
Factory Lead Time:
