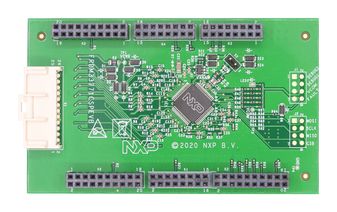

FRDM33771CSPEVB
MC33771C 14-Channel Li-Ion Battery Cell Controller IC Evaluation Board
Click image to enlarge
Manufacturer:NXP
Product Category:
Kits & Tools, Evaluation & Development Kits
Avnet Manufacturer Part #: FRDM33771CSPEVB
Secondary Manufacturer Part#: FRDM33771CSPEVB
-
RoHS 10 Compliant -
Tariff Charges
FRDM33771CSPEVB is an evaluation board for MC33771C with SPI communication. It features the MC33771C, a 14-channel battery cell controller for automotive and industrial Li-ion battery applications. It supports cell voltage measurement, passive cell balancing, GPIOs, external EEPROM and current measurement. The kit is designed to support customer development and evaluation. The device can be connected to NXP 14-cell battery emulator or a customer Li-ion battery module with 7-14 logic cells in series. The battery cell information is transferred to the microcontroller unit (MCU) through a SPI interface.
- SPI communication
- 26-pin connector for 14 cell battery connections and 4 temperature sensors
- Red status LED
- Supports cell voltage measurement, passive cell balancing, GPIOs, ext EEPROM and current measurement
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| No | ||
| Power Management Tools | ||
| No | ||
| Yes | ||
| SPI | ||
| MC33771C Evaluation Board, 20 cm Battery Connection Cable, Quick-Start Guide, Anti-Static Bag | ||
| Evaluation Board |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | NO RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8473301180 |
| Schedule B: | 8473300002 |
Factory Lead Time:
