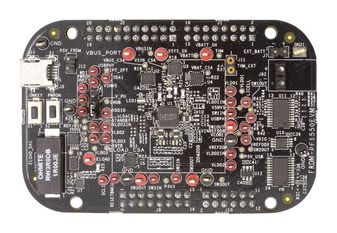

FRDM-PF1550EVM
Evaluation Board, PF1550 Power Management IC (PMIC), Arduino Compatible
Click image to enlarge
Manufacturer:NXP
Product Category:
Kits & Tools, Evaluation & Development Kits
Avnet Manufacturer Part #: FRDM-PF1550EVM
Secondary Manufacturer Part#: FRDM-PF1550EVM
-
RoHS 10 Compliant -
Tariff Charges
FRDM-PF1550EVM evaluation board (EVB) is an easy-to-use circuit board allowing user to exercise all the functions of PF1550 Power Management IC (PMIC). The EVB integrates the popular KL25Z freedom board which is used as an interface between GUI and PF1550. Analog-to-Digital Converters in the KL25Z freedom board is used to monitor the regulator voltages through the GUI.
- Single-cell Li+ battery charger
- USB charging connector
- JEITA compliant battery temp sensing
- Integrated KL25Z freedom board for control
- One 1A E-loads with configurable current
- Standard mini-USB connector for communication with PC
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| No | ||
| Power Management Tools | ||
| No | ||
| No | ||
| Evaluation Board |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8473301180 |
| Schedule B: | 8473300002 |
Factory Lead Time:
