FRDM-MC-LVMTR
BLDC Motor, 3-Phase, Low Voltage, NXP FRDM Boards, 24V, 4000RPM
Click image to enlarge
Manufacturer:NXP
Product Category:
Kits & Tools, Hardware Development Tools
Avnet Manufacturer Part #: FRDM-MC-LVMTR
Secondary Manufacturer Part#: 60AC9686
-
RoHS 10 Compliant -
Tariff Charges

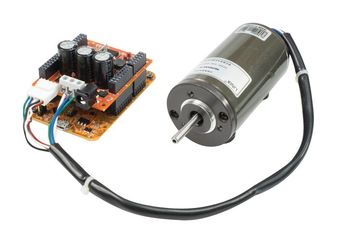

Low-voltage, 3-phase motor kit for FRDM. Add 3-phase Brushless DC (BLDC) and Permanent Magnet Synchronous Motor (PMSM) motor control capabilities to Freedom System designs with the NXP® FRDM-MC-LVMTR kit. Combine with an FRDM-KV31F or FRDM-KV10Z MCU board and either the FRDM-MC-LVBLDC for BLDC development or FRDM-MC-LVPMSM for PMSM development to create a complete low-cost reference platform. Kit includes one low voltage, synchronous three-phase, sinusoidal Bemf BLDC motor with wiring for the three motor phases and hall effects signals.
- Linix 45ZWN24-40 motor wired for use with the FRDM-MC-LVPMSM and FRDM-MC-LVBLDC shields
- 24V rated voltage
- 2.3A rated current
- 990g.cm rated torque
- 4000r/min rated speed
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Microcontroller Tools | ||
| Motor Kit |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8501312000 |
| Schedule B: | 8501312000 |
Factory Lead Time:
