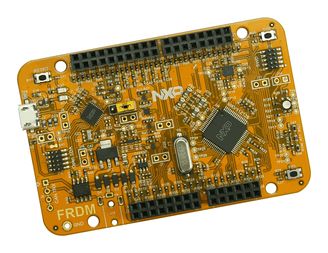

FRDM-KV11Z
Development Board, Freedom Platform, Kinetis KV1x Family MCUs, Arduino Compatible
-
RoHS 10 Compliant -
Tariff Charges
Freedom development platform for Kinetis® KV1x family 128KB, 64KB, 32KB and 16KB flash MCUs. This low-cost development tool for the Kinetis® V series KV1x MCU family built on the Arm® Cortex®-M0+ processor. Hardware is form-factor compatible with the Arduino™ R3 pin layout providing a broad range of expansion board options. The platform features OpenSDA, the NXP® open source hardware embedded serial and debug adapter running an open source bootloader. This circuit offers several options for serial communication, flash programming and run-control debugging. It is supported by a range of NXP and third-party development software including the Kinetis Motor Suite for rapid development of motor control applications.
- Power selectable 3.3V/1.8V
- Six-axis sensor combining accelerometer and magnetometer (FXOS8700CQ)
- Tri-colour user-controllable LEDs
- User controlled push-button switches
- FlexCAN I/O supported
- Thermistor sensor to measuring temperature
- Motor control auxiliary connector
- Mass storage device flash programming interface (no tool installation required to evaluate demo app)
- P&E Debug interface provides run-control debugging and compatibility with IDE tools
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| No | ||
| Microcontroller Tools | ||
| No | ||
| No | ||
| USB | ||
| Development Board |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8471500150 |
| Schedule B: | 8471500150 |
Factory Lead Time:
