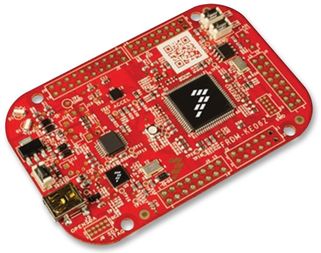

FRDM-KE06Z

The FRDM-KE06Z is a freedom development platform for Kinetis MKE06Z128VLK4 microcontroller built on ARM Cortex-M0+ core. The MKE06Z128VLK4 is a low power, high robustness and cost effective microcontroller to provide developers an appropriate entry level 32bit solution. It is a next generation microcontroller solution with enhanced ESD/EMC performance for cost sensitive, high reliability devices applications used in high electrical noise environments. The FRDM-KE06 features two microcontrollers, the target microcontroller and a serial and debug adapter (OpenSDA) microcontroller. The target microcontroller is a Kinetis E series KE06 family device and OpenSDA microcontroller is a Kinetis K series K20 family device K20DX128VFM5.

• Key input, MMA8451Q accelerometer and RGB LED
• Flexible power supply options through USB and external source
• Easy access to microcontroller I/O
• IrDA transmitter and receiver
• CAN communication
• Form factor compatible with Arduino R3 pin layout
• OpenSDA debug interface
• Mass storage device flash programming interface
• P&E debug interface provides run control debugging and compatibility with IDE tools
• New ARM standard for embedded debug interface
