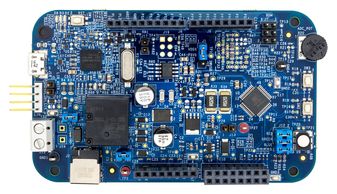

DEVKIT-S12VRP
Evaluation Board, MC9S12VRP MCU, Motor Control Relay Applications, LIN Control
Click image to enlarge
![DEVKIT-S12VRP]()
Manufacturer:NXP
Product Category:
Kits & Tools, Evaluation & Development Kits
Avnet Manufacturer Part #: DEVKIT-S12VRP
Secondary Manufacturer Part#: DEVKIT-S12VRP
-
RoHS 10 Compliant -
Tariff Charges
DEVKIT-S12VRP features the S12VRP microcontroller, an automotive 16bit MCU for motor control relay based applications. The S12VRP integrates an S12 CPU, a LIN physical interface, a current sense amplifier, a 5V regulator system to supply the microcontroller and low-side drivers to control the relay. The DEVKIT-S12VRP is an ultra-low-cost development platform that includes a relay, switch buttons, an RGB LED, circuitry for a current sense amplifier, access to all pins and an on-board OSBDM.
- MC9S12VRP in 48 pins LQFP
- BDM connector
- Connector for LIN output
- Connector for motor control
- Relay and shunt resistor
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| No | ||
| Microcontroller Tools | ||
| No | ||
| No | ||
| LIN | ||
| Evaluation Board |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | NO RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8471500150 |
| Schedule B: | 8471500150 |
Factory Lead Time:
