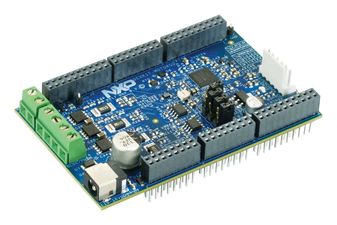

DEVKIT-MOTORGD

DEVKIT-MOTORGD is an integrated motor control shield for the DEVKIT platform. This offering combines the functionality of the FRDM-GD3000EVB and FRDM-PWRSTG for a full automotive solution. DEVKIT-MOTORGD is compatible with the low-cost evaluation board of the S32K and MPC5744P, S32K144EVB-Q100 and DEVKIT-MPC5744P respectively and can drive a 3-phase BLDC/PMSM motor. The built-in Hall/Encoder interface means DEVKIT-MOTORGD can support both sensored and sensorless motor control applications.

• 10V to 18V barrel connector
• GD3000 MOSFET gate driver
• Built-in voltage regulator
• Supports for 3-phase BLDC/PMSM motor
• Arduinoâ„¢ pin compatibility
• Hall/encode interface
• Linix 45ZWN24-40 BLDC or Nanotec DB41M024030-A motor recommended for evaluation purposes
