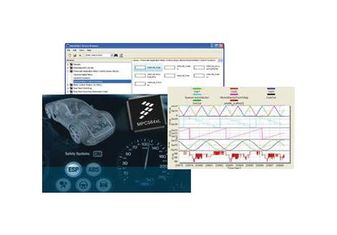

CWP-MCTB-564XL-N

The CWP-MCTB-564XL-N motor control development toolbox provides an integrated development environment and tool chain for configuring and generating all of the necessary software (including initialization routines, device drivers and a real time scheduler) to execute motor control algorithms on the Qorivva MPC564xL and MPC567xK automotive MCUs. The toolbox includes the automotive math and motor control library set developed by NXP's motor control center of excellence. It also includes dozens of blocks optimized for fast execution on NXP MCUs with bit accurate results compared to Simulink simulation using single precision math. Built in support for software and processor in the loop (SIL and PIL), enables automated comparison and plotting of numerical results.

• Generate code for standalone application with direct download to target support
• Support for MPC564xL/MPC567xK MCU families single/dual core, IEC 61508 (SIL3) and ISO 26262 (ASIL-D)
• Optimized library blocks including park/clarke transforms, digital filters, and general functions
• I/O blocks including CAN, SPI, PIT timer, Sine Wave Generation, eTimer, PWM and A/D
• On target profiling of functions and tasks
• Data acquisition and calibration using Free MASTER tool
• Boot loader utility for programming application in flash or RAM
• Seamless integration with embedded coder including SIL and PIL test
