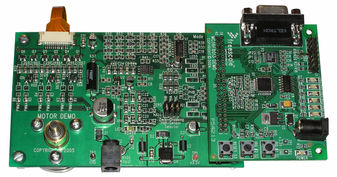

APMOTOR56F8000E

APMOTOR56F8000E is a motor control kit for MC. The motor may be controlled by its hall effect sensors or by sensor less techniques. The motor control demonstration system can be used to develop real time software and hardware products. The motor control demonstration system provides the features necessary for a user to write and debug software and to demonstrate the functionality of that software.

• Brushless motor, Maxon EC-200187, 6W 9V
• Daughter card connector, to allow the connection of the 56F8013 demonstration board
• Motor bus voltage sense logic
• Motor bus current sense logic
• Back EMF phase voltage sense logic
• Three phase H-bridge power stage
• Five on board real time user debugging LEDs
• Zero crossing logic
• Power regulation logic
