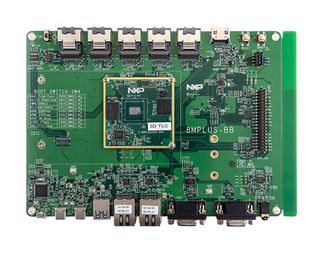

8MPLUSLPD4-EVK

8MPLUSLPD4-EVK is an evaluation kit for the i.MX 8M Plus applications processor. It provides a platform for comprehensive evaluation of the i.MX 8M Plus Quad/Dual and i.MX 8M Plus QuadLite applications processors. It delivers high performance with power efficiency, machine learning and voice and vision capabilities, advanced multimedia interfaces and Wi-Fi/BT for connectivity out-of-the box. The two-board solution consists of a compact 2.3”x2.3” compute module and a larger base board that brings out the broad connectivity that is needed for product evaluation. The compute module is a proven, compact reference to accelerate your own design. Suitable for consumer, industrial and factory Automation applications.

• Processor: i.MX 8M Plus Quad applications processor, 4x Arm®/1x Arm® Cortex-A53/M7 (1.8GHz/800MHz)
• Cadence® Tensilica® HiFi4 DSP up to 800MHz and neural processing unit
• Memory: 6GB LPDDR4, 32GB eMMC 5.1 and 32MB QSPI NOR
• Display and camera interface: 1x MIPI-DSI interface(Mini-SAS CONN), 1x LVDS interface(Mini-SAS CONN)
• Wireless:AzureWave AW-CM276MA (88W8997): Wi-Fi 5 (802.11ac) 2x2 dual-band (2.4/5GHz), Bluetooth 5.1
• Audio: audio DAC and microphone/headphone jacks
• Connectivity: 2x 10/100/1000 Ethernet port (1x w/ TSN)
• USB 3.0 Type C for power, USB 3.0 Type A, USB 3.0 Type C and PCIe M.2 interface
• 2x CAN DB9 female connectors
• Tools and OS support: Linux, Android and FreeRTOS
