13237ADC-SFTW

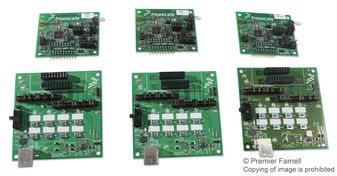

13237ADC-SFTW is a MC13237CHT development kit. The MC1323x kit is ideal for wireless applications in the consumer, health care and industrial markets. NXP offers a full set of hardware platforms for evaluation of the cost-effective MC1323X system-on-chip (SoC) solutions. Designers may choose the hardware and software platform that achieves their design goals. The newest SoC product family integrates the 2.4GHz transceiver, HCS08 series MCU, memory and input/output (I/O) in a single package. The 8bit integrated alternative allows easy implementation of cost-effective solutions for those familiar with the HCS08 family and for those just starting out with embedded wireless design. MC1323X family development kit is built on three modular boards, each of which offer features and functions targeted at consumer electronics applications. The modular boards are assembled into specific configurations to allow straightforward system development.

• MC1323x 802.15.4 2.4GHz PiP, LCD (RCM), four LCD soft touch push buttons (RCM)
• 36 button keypad (RCM), eight direction plus select joystick (RCM)
• IR transmitter (RCM), buzzer (RCM), digital accelerometer (RCM)
• Digital gyroscope (RCM), I/O header (REM), USB connection
• Power LED and six status LEDs (REM), power LED and six status LEDs (RCM)
• Six push buttons (REM), IR receiver and transmitter (REM)
• Printed F antenna (REM), on/off switch, battery connectors, test points
