13237ADC-BDM

13237ADC-BDM is a development kit for evaluate the operation and performance of MC13237CHT, a system-on-chip remote control platform for the IEEE® 802.15.4 standard. The MC13237 incorporates a complete low power 2.4GHz radio frequency transceiver with Tx/Rx switch, an 8bit HCS08 CPU and a functional set of MCU peripherals.

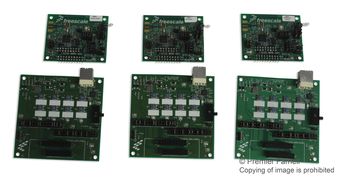

1323X–MRB (Modular Reference Board)

• MC13234CHT 2.4GHz SoC
• Printed F antenna
• Programmable 128 KB Flash with 8 KB of RAM
• On board BDM port for MCU Flash reprogramming and in–circuit hardware debugging
• Header for connection to RCM and REM
• IR Transmitter
• Connections for battery or external power supply

1323x–REM (Remote Extender Board)

• Connects to the 1323X-MRB or 1323X-MRB-ADC
• Onboard expansion capabilities for external application–specific development activities
• USB connector
• Four LEDs and eight switches for demonstration, monitoring and control
• Built-in battery connector for two AA batteries

1323x–RCM (Remote Control Motherboard)

• Connects to the 1323X-MRB or 1323X-MRB-ADC
• Programmable two–line LCD for displaying messages
• Synaptics touch sensor
• On board expansion capabilities for external application–specific development ac
