13234DSK-BDM

Developer Starter Kit, Low Cost SoC Remote Control Platform, MC13234CHT

Click image to enlarge
13234DSK-BDM
  • 13234DSK-BDM
Official logo for NXP
Manufacturer:NXP
Product Category: RF & Wireless, RF & Wireless Development Kits
Avnet Manufacturer Part #: 13234DSK-BDM
Secondary Manufacturer Part#: 13234DSK-BDM
  • Legend Information Icon RoHS 10 Compliant
  • Legend Information Icon Tariff Charges

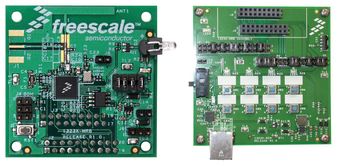

13234DSK-BDM is a MC13234CHT developer starter kit. The 1323X-MRB contains the MC13234CHT integrated circuit and all necessary input/ output connections. It is a self contained module in a compact reference design. The 1323X-REM is a remote extender and general application development board.

  • IEEE 802.15.4 standard compliant SoC
    • supports SMAC, IEEE 802.15.4, SynkroRF™ and ZigBee protocol stacks
  • 2.4 GHz ISM band operation
  • -94 dBm typical receiver (<1% per,=""" 20-byte="""">
  • Programmable transmitter output power (-30 dBm to +2 dBm typical)
  • Low power consumption
    • <1 ua="""">
    • 22 mA low power Rx Sniff mode
    • 34 mA Rx mode
    • 26 mA Tx mode
  • Hardware acceleration for IEEE 802.15.4 applications
  • Advanced encryption/decryption hardware engine (AES 128-bit)
  • 8-bit HCS08 MCU operating at 32 MHz bus frequency
  • 128 KB Flash, 8 KB RAM
  • 12-bit analog-to-digital converter (MC13237 only)
  • 1.8–3.6V with low battery detect
  • -40°C to +85°C operating temperature
  • 7 mm x 7 mm 48-pin LGA package
    • "

    Technical Attributes

    Find Similar Parts

    		 Description Value
    		RF, Wireless Connectivity
    		Developer Starter Kit
    		RF and Microwave Tools
    		Low Cost SoC Remote Control Platform
    		2 x 1323X-MRB, 2 x 1323X-REM, USB Multilink, CodeWarrior IDE, BeeKit, Freescale Network Analyzer
    		RF and Microwave Tools
    		MC13234CHT

    ECCN / UNSPSC / COO

    Description Value
    Country of Origin: NO RECOVERY FEE
    ECCN: 5A002.A.1
    HTSN: 8471500150
    Schedule B: 8471500150
    In Stock :  0
    Additional inventory
    Factory Lead Time: 105 Weeks
    Price for: Each
    Quantity:
    Min:1  Mult:1
    USD $:
    1+
    $329.9562
    2+
    $328.27275
    4+
    $326.5893
    8+
    $324.90585
    16+
    $323.2224
