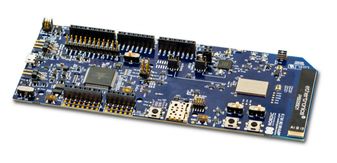

NRF9160-DK

The nRF9160 Development Kit (DK) is a versatile single board development kit for cellular IoT development with LTE-M and NB-IoT and GPS functionality using the nRF9160 System-in-Package (SiP). he kit is hardware compatible with the Arduino Uno Revision 3 standard, making it possible to use 3rd-party shields that are compatible to this standard. The kit allows access to all I/O and interfaces via connectors and has 4 LEDs, 2 buttons and 2 switches which are user-programmable. The nRF9160 DK also has a 4FF SIM card slot for connecting the nRF9160 SiP to a cellular network. In the nRF9160 DK a data roaming eSIM card from iBasis preloaded with 10MB of data is included. This card can be used for LTE-M access.

• Affordable, rapid prototyping and development solution for LTE/NB-IoT with nRF9160 SiP
• Integrated LTE-M and NB-IoT modem
• Cellular band support: US: B2, B4, B5, B12, B13. EU/APAC: B3, B8, B20, B28
• Arm Cortex-M33 CPU
• Arm CryptoCell 310 cryptographic accelerator
• Arduino Rev. 3 compatible connector for use with 3rd party shields
• All I/O (32) and interfaces available via connectors
• Segger J-Link OB Program/Debug supported
• Support for Program/Debug of external boards
• USB interface for Power and Program/Debug.
• USB interface for CDC/UART
• SWF RF connector for direct RF measurements
• Pins for power consumption measurements
• 2 x user-programmable buttons
• 2 x user-programmable switches
