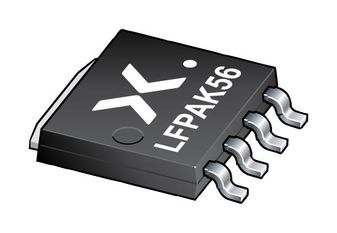

PSMN0R9-30YLDX

Trans MOSFET N-CH 30V 100A 4-Pin LFPAK-56 T/R

Manufacturer:Nexperia
Product Category: Transistors, MOSFETs, Single MOSFETs
Avnet Manufacturer Part #: PSMN0R9-30YLDX
  • Legend Information Icon RoHS 10 Compliant
  • Legend Information Icon Tariff Charges

The PSMN0R9-30YLD is a 30V logic level N-channel Enhancement Mode MOSFET using NextPowerS3 technology. NextPowerS3 portfolio utilising NXP's unique SchottkyPlus technology delivers high efficiency, low spiking performance usually associated with MOSFETs with an integrated Schottky or Schottky-like diode but without problematic high leakage current. It is particularly suited to high efficiency applications at high switching frequencies. Suitable for on-board DC-to-DC solutions for server and telecommunications and secondary-side synchronous rectification in telecommunication applications.

  • Avalanche rated, 100% tested at I (as) = 190A
  • Ultra low QG, QGD and QOSS for high system efficiency, especially at higher switching frequencies
  • Superfast switching with soft-recovery, s-factor 1
  • Low spiking and ringing for low EMI designs
  • Optimised for 4.5V gate drive
  • Low parasitic inductance and resistance
  • High reliability clip bonded and solder die attach power SO8 package
  • Wave solderable exposed leads for optimal visual solder inspection

Technical Attributes

Find Similar Parts

Description Value
null
30 V
null
10 V
null
Surface Mount
null
null
N Channel
870 µohm
150 °C
100 A
2.2 V

ECCN / UNSPSC / COO

Description Value
Country of Origin: RECOVERY FEE
ECCN: EAR99
HTSN: 8541290040
Schedule B: 8541290080
In Stock :  0
Additional inventory
Factory Lead Time: 16 Weeks
Price for: Each
Quantity:
Min:1500  Mult:1500
Need More?
USD $:
$ 0.88054
1500+
$0.88054
SubTotal:
$1,320.81
