PMEG045T150EPDAZ
Schottky Rectifier, 45 V, 15 A, Single Dual Anode, SOT-1289, 3 Pins, 550 mV
Click image to enlarge

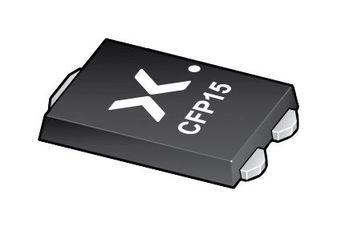

![PMEG045T150EPDAZ]()
Manufacturer:Nexperia
Product Category:
Discretes, Diodes & Rectifiers, Schottky Rectifiers
Avnet Manufacturer Part #: PMEG045T150EPDAZ
Secondary Manufacturer Part#: PMEG045T150EPDAZ
-
RoHS 10 Compliant -
Tariff Charges
Trench Maximum Efficiency General Application (MEGA) Schottky barrier rectifier, encapsulated in a CFP15 (SOT1289) power and flat lead Surface-Mounted Device (SMD) plastic package.
- Average forward current: If(AV) = 15 A
- Reverse voltage: Vr = 45 V
- Low forward voltage
- Low leakage current due to Trench MEGA Schottky technology
- High power capability due to clip-bonding technology and heat sink
- Small and thin SMD power plastic package, typical height 0.78 mm
- AEC-Q101 qualified
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 15 | ||
| 0.55 | ||
| 3 | ||
| 175 °C | ||
| 45 |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8541100080 |
| Schedule B: | 8541100080 |
Factory Lead Time:
