PESD5V0U1BLD,315
ESD Protection Device, DFN1006D, 2 Pins, 5 V

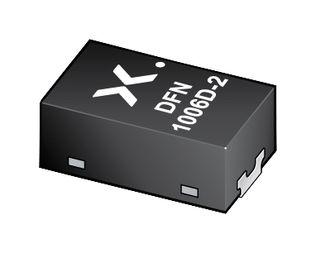

Click image to enlarge
Manufacturer:Nexperia
Product Category:
Circuit Protection, ESD Protection Devices
Avnet Manufacturer Part #: PESD5V0U1BLD,315
Secondary Manufacturer Part#: PESD5V0U1BLD,315
-
RoHS 10 Compliant -
Tariff Charges
Ultra low capacitance bidirectional ElectroStatic Discharge (ESD) protection diode designed to protect one signal line from the damage caused by ESD and other transients. The device is housed in a SOD882D leadless ultra small Surface-Mounted Device (SMD) plastic package with visible and solderable side pads.
- Bidirectional ESD protection of one line
- AEC-Q101 qualified
- Ultra small SMD plastic package
- ESD protection up to 10 kV
- Solderable side pads
- IEC 61000-4-2; level 4 (ESD)
- Package height typ. 0.37 mm
- Ultra low leakage current: IRM = 5 nA
- Ultra low diode capacitance Cd = 2.9 pF
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 5.5 V | ||
| 3.5 pF | ||
| SOD-882D | ||
| Bidirectional | ||
| Surface Mount | ||
| 1 | ||
| 2 | ||
| 1 | ||
| 150 °C | ||
| -55 °C | ||
| 5 V | ||
| 100 nA | ||
| 5 V |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8541100080 |
| Schedule B: | 8541100080 |
Factory Lead Time:
