PESD3USB3SZ
ESD Protection Device, WLCSP, 15 Pins, 5 V, PESDxUSB3S Series

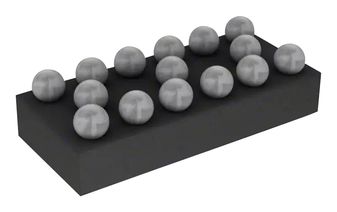

Click image to enlarge
Manufacturer:Nexperia
Product Category:
Circuit Protection, ESD Protection Devices
Avnet Manufacturer Part #: PESD3USB3SZ
Secondary Manufacturer Part#: PESD3USB3SZ
-
RoHS 10 Compliant -
Tariff Charges
The devices are ElectroStatic Discharge (ESD) protection for one, two and three differential channels. It is footprint compatible to PCMFxUSB3S common mode filters with ESD protection. The diodes provide protection to downstream components from ESD voltages up to ±15 kV on each signal line.
- Allows switching between PCMFxUSB3S common mode filters with ESD protection and PESDxUSB3S ESD protection in the same footprint
- TREOS protection process for very high system-level ESD robustness: superior protection of sensitive Systems on Chips (SoCs)
- ESD protection for one, two and three differential channels up to ±15 kV contact discharge according to IEC 61000-4-2
- Industry-standard WLCSP5, 10 and 15 packages for smallest footprint
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 6 V | ||
| 0.45 pF | ||
| WLCSP | ||
| Unidirectional | ||
| Surface Mount | ||
| 6 | ||
| 15 | ||
| 3 | ||
| 125 °C | ||
| -40 °C | ||
| 5 V | ||
| PESDxUSB3S Series | ||
| 100 nA | ||
| 5 V |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8541100080 |
| Schedule B: | 8541100080 |
Factory Lead Time:
