BAT46WJF
Small Signal Schottky Diode, Single, 100 V, 250 mA, 850 mV, 2.5 A, 150 °C

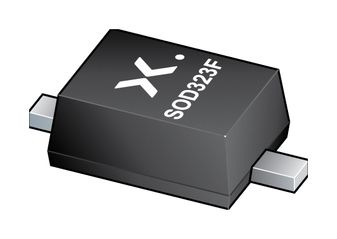

Click image to enlarge
Manufacturer:Nexperia
Product Category:
Discretes, Diodes & Rectifiers, Small Signal Schottky Diodes
Avnet Manufacturer Part #: BAT46WJF
Secondary Manufacturer Part#: BAT46WJF
-
RoHS 10 Compliant -
Tariff Charges
Single planar Schottky barrier diode with an integrated guard ring for stress protection, encapsulated in a very small and flat lead SOD323F (SC-90) Surface-Mounted Device (SMD) plastic package.
- Low forward voltage
- Reverse voltage VR = 100 V
- Very small and flat lead SMD plastic package
- Low capacitance
- AEC-Q101 qualified
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 250 | ||
| SOD-323F | ||
| Single | ||
| Surface Mount | ||
| 2.5 | ||
| 850 | ||
| 2 | ||
| 150 °C | ||
| AEC-Q101 | ||
| 100 |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8541100080 |
| Schedule B: | 8541100080 |
