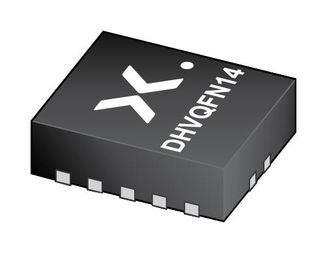

74LVC4066BQ-Q100X
Analog Switch Quad SPST 14-Pin DHVQFN EP T/R
Click image to enlarge
Manufacturer:Nexperia
Product Category:
Analog Switches & Multiplexers, Analog Switches, Multiplexers & Demultiplexers
Avnet Manufacturer Part #: 74LVC4066BQ-Q100X
Secondary Manufacturer Part#: 74LVC4066BQ-Q100X
-
RoHS 10 Compliant -
Tariff Charges
74LVC4066BQ-Q100X is a high-speed Si-gate CMOS device. It provides four single-pole, single-throw analogue switch functions. Each switch has two input/output terminals (nY and nZ) and an active HIGH enable input (nE). When nE is LOW, the analogue switch i
- Wide supply voltage range from 1.65V to 5.5V, switch current capability of 32mA
- High noise immunity, CMOS low-power consumption, direct interface TTL-levels
- Latch-up performance exceeds 250mA, enable inputs accept voltages up to 5V
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Quad SPST | ||
| DHVQFN | ||
| Bilateral Switch | ||
| Surface Mount | ||
| 195@1.95V Ohm | ||
| Surface Mount | ||
| 4 | ||
| 14 | ||
| 130 O | ||
| 34 O | ||
| 0.04@5.5V | ||
| 5.5, 1.65 V | ||
| -40 to 125 °C | ||
| 125 °C | ||
| -40 °C | ||
| 14DHVQFN EP | ||
| 14 | ||
| Single Supply | ||
| 3.1 x 2.6 x 0.95 mm | ||
| AEC-Q100 | ||
| No | ||
| DHVQFN EP | ||
| 1.65V to 5.5V | ||
| SPST - NO |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8542390050 |
| Schedule B: | 8542390060 |
