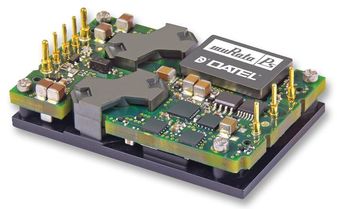

UQQ-12/8-Q12PB-C
Isolated Through Hole DC/DC Converter, Industrial & ITE, 4:1, 96 W, 1 Output, Adj, Fixed, 12 V, 8 A, Regulated, Quarter Brick
-
RoHS 10 Compliant -
Tariff Charges
The UQQ-12/8-Q12PB-C is a 1-output board-mount isolated DC to DC Converter with fully isolated output voltage and wide input voltage range. The UQQ series 96W low profile DC/DC converter employs an interleaved, synchronous-rectifier topology that exploits 100% of their duty cycle. They simultaneously achieve ultra-high efficiency, tight line/load regulation, low noise and quick step response. A state of the art, single-board, open-frame design with reduced component count, high efficiency, low-on-resistance FET's and planar magnetics embedded in heavy-copper pc boards all contribute to impressive thermal derating. The standard footprint carries on/off control (positive or negative polarity), output trim (+10/-20%) and output sense functions.
- Interleaved synchronous-rectifier topology
- Outstanding thermal performance
- On/off control, trim and sense functions
- Fully isolated, up to 2250VDC (48Vin)
- Output overvoltage protection
- Fully I/O protected, thermal shutdown
- Input under-voltage shutdown
- Current limiting
- Short-circuit protection
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Adjustable, Fixed | ||
| Quarter Brick | ||
| 4:1 | ||
| 36 V | ||
| 9 V | ||
| 12 V | ||
| 2.25 kV | ||
| 1 | ||
| -40 to 105 °C | ||
| 8 A | ||
| 8 A | ||
| 96 W | ||
| Regulated | ||
| 12 V | ||
| 12 V | ||
| Industrial & ITE | ||
| 56.4 mm | ||
| 36.8 x 56.4 x 10.9 mm | ||
| 12.7 mm | ||
| 36.8 mm |
