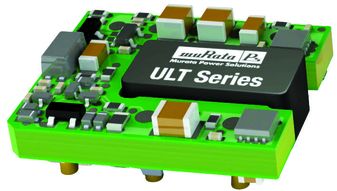

ULT-12/2.5-D48NM-C

The ULT Series isolated DC/DC converter represents the next generation converters in a 1/32 brick package. This converter is the “industrystandard” 1/32 brick form factor (0.92" x 0.75"" x 0.35""). The product fully complies with RoHS-6 directive.The thirty-second brick is offered as an open frame module; mounting options include throughhole or surface mount (SMT) pinouts. Typical applications include Optical Networking Equipment, Wireless Base Station applications, Microwave Radio communications, and Telecom and Data Equipment applications.Modules will supply an output power of up to 30 watts over the input range of 36-75V. The ULT Series also provides a cost effective approach to highly effi cient systems requiring 12V, 5V, and 3.3V voltages, eliminating the requirement for a “Bus Converter” and multiple PoL converters. The ULT family provides basic insulation with 1500Vdc isolation meeting the requirements of UL/IEC 60950. The ULT series modules are DOSA compatible industry standard 1/32 brick."

• 2:1 Input Voltage Range (36V – 75V, 48 Volts, nominal)
• Output Voltage: 12V
• Up to 30W output power @ 36 – 48 – 75Vin
• 89% efficiency (typical, 5Vout)
• Through-hole and optional SMT package
• Miniature 1/32 brick open frame package
• Positive & Negative Logic On/Off control option
• Over-current & Over-temperature protection
• Low output ripple and noise
• Strong thermal derating characteristics
• Operational Temperature Range –40°C to +85°C
• 1500V I/O isolation
• Tight line/load regulation
• Certifi ed to UL/IEC 60950-1, CAN/CSA C22.2 No. 60950-1, safety approvals, 2nd Edition
