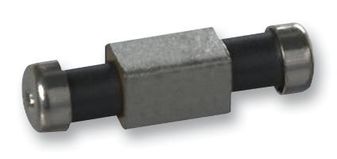

NFE61PT472C1H9L
Power Line Filter, EMIFIL, 50 VDC, 2 A, 4700 pF, 1000 Mohm
Click image to enlarge
Manufacturer:Murata
Product Category:
Filters, EMI/RFI Filters
Avnet Manufacturer Part #: NFE61PT472C1H9L
Secondary Manufacturer Part#: 97K6475
-
RoHS 10 Compliant -
Tariff Charges
NFE61PT472C1H9L is a chip EMIFIL NFE61PT series T-type circuit EMI suppression filter. Its large rated current of 2A and low voltage drop due to small DC resistance are suitable for DC power line use. The feedthrough capacitor realizes excellent high-frequency characteristics. The structure incorporates built-in ferrite beads which minimize resonance with surrounding circuits.
- EIA 2706 size code and single circuit design
- 33pF to 4,700pF lineups can be used in signal lines
- Rated voltage of 50VDC and 125VDC withstanding voltage
- Operating temperature range from -40°C to +85°C
- Minimum insulation resistance is 1000Mohm
- 4700pF capacitance with +80/-20% capacitance tolerance
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 4700 pF | ||
| 2606 | ||
| Matte Tin|Silver | ||
| 265 °C | ||
| 2 A | ||
| Surface Mount | ||
| -25 to 85 °C | ||
| 2 | ||
| 1.6 mm | ||
| 6.8 x 1.6 x 1.6 mm mm | ||
| 1.6 mm | ||
| 6.8 mm | ||
| No | ||
| NFE Series | ||
| 2706 | ||
| Flat | ||
| LC Filter | ||
| 50 Vdc |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8543706000 |
| Schedule B: | 8543706000 |
Factory Lead Time:
