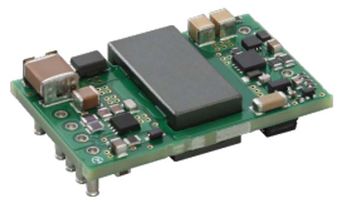

MYBSP0055AABFT
Isolated Surface Mount DC/DC Converter, 2:1, 25.5 W, 1 Output, 5 V
Click image to enlarge
Manufacturer:Murata
Product Category:
Uncategorized
Avnet Manufacturer Part #: MYBSP0055AABFT
Secondary Manufacturer Part#: MYBSP0055AABFT
-
RoHS 10 Compliant -
Tariff Charges
The MYBSP0122BABFT / MYBSP0055AABFT is an isolated, regulated, DCDC converter for PoE PD that has an input range of 37-57Vdc with a typical efficiency of 92.5%(12Vout) and 90.5% (5Vout). With full 2250 Volt DC isolation and multiple protection features, this series is ideal for IEEE 802.3at compliant devices. This series has detection and classification compliant with IEEE802.3at and three additional pins for Type2 PSE Indication and Adapter ORing (compared to MYBSP0122BABF/ MYBSP0055AABF).
- Support IEEE802.3at class4
- Support Type2 PSE indicator
- Support adapter ORing
- Surface mount module
- 2250VDC input-output isolation
- Operating temperature range from -40 to +85°C
- 90.5% efficiency (typ)
- Module has self-protection features
- Include input undervoltage lockout and output current limit
Technical Attributes
Find Similar Parts
| Description | Value |
|---|
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8504409580 |
| Schedule B: | 8504409585 |
