MGJ1D151905MPC-R7
Isolated Surface Mount DC/DC Converter, Industrial, ITE & Medical, 1 W, 2 Outputs, Fixed, 19 V, 42 mA, -5 V, 42 mA, UNREG, SMD

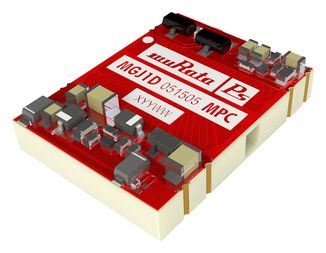

Click image to enlarge
Manufacturer:Murata
Product Category:
Power Supplies, DC / DC Converters, Isolated Surface Mount DC / DC Converters
Avnet Manufacturer Part #: MGJ1D151905MPC-R7
Secondary Manufacturer Part#: MGJ1D151905MPC-R7
-
RoHS 10 Compliant -
Tariff Charges
The MGJ1D 1w series is an isolated, dual output DC/DC suitable for IGBT or SiC gate drive. It is rated for 5.7KV isolation in an SMD foorprint (LxWxH: 19.9x15.0x4.4mm). 12 p/n variants are available with input voltages of 5v, 12v, 15v and 24v. It has an embedded transformer technology where the ferrite core and windings are integrated into the pcb.
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Fixed | ||
| Surface Mount Device | ||
| 16.5 V | ||
| 13.5 V | ||
| 15 V | ||
| 5.7 kV | ||
| 2 | ||
| 42 mA | ||
| 42 mA | ||
| 1 W | ||
| Unregulated | ||
| 19 V | ||
| -5 V | ||
| Gate Drive, Industrial, ITE & Medical | ||
| 19.94 mm | ||
| 4.41 mm | ||
| 14.99 mm |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8504409580 |
| Schedule B: | 8504406001 |
Factory Lead Time:
