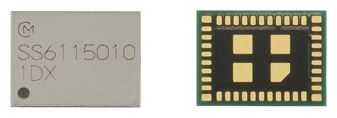

LBEE5KL1DX-883
Multiprotocol Module, Bluetooth 5.1, IEEE 802.11b/g/n, 2.4GHz to 2.4835GHz, 2.402GHz to 2.48GHz, 3V to 4.8V
-
RoHS 10 Compliant -
Tariff Charges
LBEE5KL1DX-883 Type 1DX module is an ultra-small module that includes 2.4GHz WLAN and Bluetooth functionality. Based on Cypress CYW4343W, the module provides high-efficiency RF front end circuits. The module is designed to fit into small spaces and is smaller than a dime. Minimal external circuitry is required to complete a radio design; add an antenna, power source, clocks, processor, and associated interface hardware and the radio hardware design is complete. To ease Wi-Fi certification, the Type 1DX module complies with IEEE 802.11b/g/n and Bluetooth Version 4.1 plus EDR, Power Class 1 (10dBm max) + BLE. Software is available for Linux and Android.
- 2.4GHz Wi-Fi + Bluetooth Module
- Network Topology: AP and STA dual mode
- Chipset: Cypress (CYW4343W)
- Processor: No
- Modulation: DSSS / CCK / OFDM
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 2.4GHz to 2.4835GHz |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | 5A992.C |
| HTSN: | 8517620090 |
| Schedule B: | 8517620085 |
Factory Lead Time:
