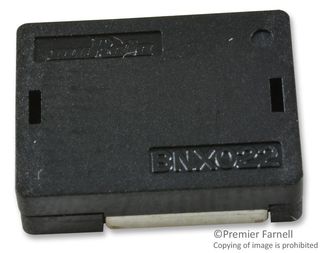

BNX022-01L
Power Line Filter, EMIFIL, 50 V, 10 A
Click image to enlarge
Manufacturer:Murata
Product Category:
Filters, EMI/RFI Filters
Avnet Manufacturer Part #: BNX022-01L
Secondary Manufacturer Part#: BNX022-01L
-
RoHS 10 Compliant -
Tariff Charges
The BNX022-01L is an EMI Suppression Filter provides excellent noise suppression on DC power lines. This EMIFIL® BNX02 series block type filter is effective for impulse noise such as electro-static discharge or spike noise. This SMD high performance DC line filter comes with reduced mounting area and volume.
- 125VDC Withstanding voltage
- 500MO Maximum insulation resistance
- -40 to 125°C Operating temperature range
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 1 uF | ||
| 260 °C | ||
| 35 dB | ||
| 20 A | ||
| Surface Mount | ||
| 0.001 to 1, 1,000 GHz | ||
| -40 to 125 to 125 °C | ||
| 4 | ||
| 9.1 mm | ||
| 12.1 x 9.1 x 3.1 mm | ||
| 3.1 mm | ||
| 12.1 mm | ||
| No | ||
| BNX Series | ||
| SMD | ||
| Solder | ||
| LC Filter | ||
| 50 Vdc |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8548000000 |
| Schedule B: | 8548001000 |
Ships
in 1 bus. day
