27T332C

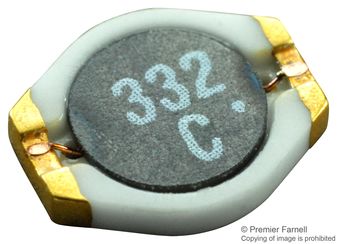

Power Inductor (SMD), 3.3 uH, ± 20%, 1.2 A, Unshielded, 1.2 A, 6.45mm x 5.4mm x 1mm
Click image to enlarge
Manufacturer:Murata
Product Category:
Inductors, Power Inductors, SMD Power Inductors
Avnet Manufacturer Part #: 27T332C
Secondary Manufacturer Part#: 27T332C
-
RoHS 10 Compliant -
Tariff Charges
The 2700T series is a range of ultra-low profile, surface-mount power inductors. They are designed for use in power applications with restricted height, such as handheld devices, DC-DC converters and notebook computers. The products are supplied in tape and reel for high-volume, automated surface-mount assembly.
- RoHS compliant
- Up to 2.0A IDC
- 1.0µH to 330µH
- Low RDC
- Ultra-low profile
- UL 94V-0 packaging materials
- J-STD-020D reflow
- Custom inductance values available
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 160 mOhm | ||
| 3.3 uH | ||
| 20 | ||
| Unshielded | ||
| 1.05 mm | ||
| 6.55 mm | ||
| 2700T Series | ||
| 5.5 mm | ||
| 1.2 A | ||
| 1.2 A |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8504508000 |
| Schedule B: | 8504500000 |
Factory Lead Time:
