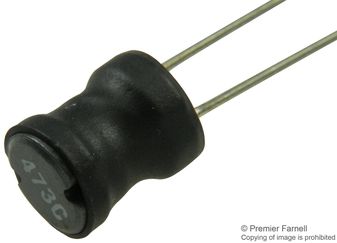

22R473C
Inductor, 2200R Series, 47 µH, 770 mA, 0.22 ohm, ± 10%
Click image to enlarge
Manufacturer:Murata
Product Category:
Inductors, Power Inductors, Radial Leaded Power Inductors
Avnet Manufacturer Part #: 22R473C
Secondary Manufacturer Part#: 22R473C
-
RoHS 10 Compliant -
Tariff Charges
The 22R473C is a miniature Radial Leaded Inductor with fully tinned leads. This 2200R series inductor features MIL-I-23053/5 class I sleeving and suitable for low to medium current applications. The small footprint makes this inductor ideal for high density applications where a chip inductor will not cope with the power requirement. Supports 1kHz frequency and ±10% inductance tolerance. Maximum DC current occurs when either the inductance falls to 90% of its nominal value or when its temperature rise reaches 30°C, whichever is sooner.
- Low DC resistance
- Backward compatible with Sn/Pb soldering systems
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 220 mOhm | ||
| 47 uH | ||
| 10 | ||
| Unshielded | ||
| 2200R Series | ||
| 770 mA | ||
| 770 mA |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8504508000 |
| Schedule B: | 8504500000 |
Factory Lead Time:
