MP6508GF-P
Stepper Motor Driver Full Bridge Bipolar 2.7V to 18V 1.2A 16-Pin TSSOP-EP T/R

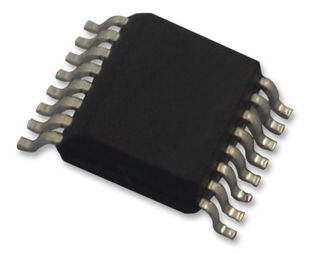

Click image to enlarge
Manufacturer:MPS
Product Category:
Power Management, Drivers & Controllers, Motor Drivers / Controllers
Avnet Manufacturer Part #: MP6508GF-P
Secondary Manufacturer Part#: MP6508GF-P
-
RoHS 10 Compliant -
Tariff Charges
- 2.7V to 18V, 1.2A, bipolar stepper motor driver with integrated MOSFETs in TSSOP-16 EP package
- Two internal full bridge drivers
- Low on resistance(HS:250mohm; LS:250mohm)
- Internal charger pump for the high-side driver
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| TSSOP-EP | ||
| Motor Driver | ||
| Brushed DC, Two Phase Stepper | ||
| 2 | ||
| 28 | ||
| 125 °C | ||
| -40 °C | ||
| 1.2 A | ||
| 18 V | ||
| 2.7 V |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8542390050 |
| Schedule B: | 8542390060 |
Factory Lead Time:
