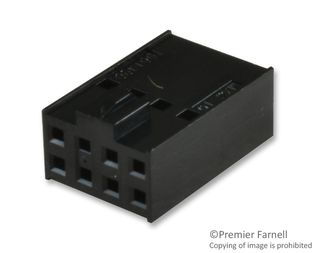

90142-0008
Connector Housing, C-Grid III 90142, Receptacle, 8 Ways, 2.54 mm, 90119 Crimp Terminal
Click image to enlarge
Manufacturer:Molex
Product Category:
Connectors, Discrete Housing Connectors
Avnet Manufacturer Part #: 90142-0008
Secondary Manufacturer Part#: 90142-0008
-
RoHS 10 Compliant -
Tariff Charges
The 90142-0008 from Molex is C-Grid III 90142 series housing for female contacts. It is a 8 position black colour housing with pitch spacing of 2.54mm.
- Housing material is polyphenylene oxide (PPO)
- Dual row housing
- Non stackable
- UL certified
- Suitable for wire to board connector system
- Flammability rating meets UL94 V-0
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| PPO (Polyphenylene Oxide) | ||
| Straight | ||
| Receptacle | ||
| Black | ||
| 3 A | ||
| Cable Mount | ||
| 8 | ||
| 2 | ||
| -55 to 105 °C | ||
| 2.5400 mm | ||
| 15.24 mm | ||
| 10.16 x 15.24 x 7.72 mm mm | ||
| 7.72 mm | ||
| 10.16 mm | ||
| 90142 | ||
| Wire to Board | ||
| 350|350 Vdc|Vac |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8538906000 |
| Schedule B: | 8538907020 |
