87713-1001

Name: 87713-1001
Brand: Molex
SKU: 87713-1001
Availability: InStock

Conn SATA RCP 15Power/7Signal POS 1.27mm Solder ST SMD 22 Terminal 1 Port Tray

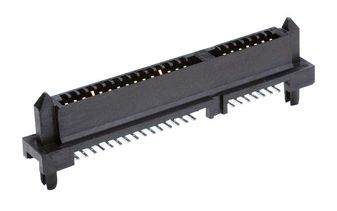

Click image to enlarge

Manufacturer:Molex

Product Category: Connectors, I/O Connectors

Avnet Manufacturer Part #: 87713-1001

Secondary Manufacturer Part#: 87713-1001

RoHS 10 Compliant
Tariff Charges

Description

Technical Attributes

Find Similar Parts

	Description	Value
	Connector Orientation	Straight
	Contact Material	Copper Alloy
	Contact Plating	Gold
	Contact Termination Type	Solder
	Gender	Receptacle
	Mounting	Surface Mount
	Termination Method	Solder

ECCN / UNSPSC / COO

Description	Value
Country of Origin:	RECOVERY FEE
ECCN:	EAR99
HTSN:	8536694040
Schedule B:	8536694040

In Stock : 0

Additional inventory

Factory Lead Time: 133 Weeks

Price for: Each

Quantity:

Min:2880 Mult:1

USD $:

39+

$3.52316

100+

$3.40294

200+

$3.28615

400+

$3.16936

800+

$3.05326
