74441-0010
Pluggable I/O Connector, SFP, SFP+, 20 Contacts, 1 x 1 (Single), Surface Mount, 74441 Series

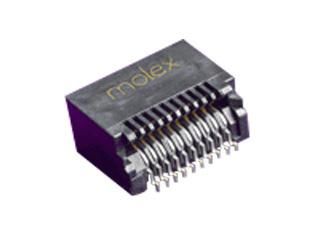

Click image to enlarge
Manufacturer:Molex
Product Category:
Connectors, I/O Connectors, Other I/O Connectors
Avnet Manufacturer Part #: 74441-0010
Secondary Manufacturer Part#: 74441-0010
-
RoHS 10 Compliant -
Tariff Charges
The 74441-0010 is a 20-circuit 2-row 0.80mm pitch SFP, SFP Plus (SFP+) host right angle connector, Z-axis pluggable, with 0.76µm gold plating, gold-plated copper alloy contacts, PCB mounting and surface mount termination. This 74441 series connector is made of high temperature thermoplastic, can be used with EMI shield, 73927 SFP cage, 86025 LC duplex cable assembly, guide frame, 73939 HSSDC2 cable assembly, mates with SFP modules, suitable for module-to-board application.
- Black colour
- UL94V-0 flammability rating
- Current rating per contact is 0.5A
- Voltage rating is 30VAC/DC
- Temperature range from -40 to 85°C
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Thermoplastic | ||
| Right Angle | ||
| Copper Alloy | ||
| Gold | ||
| Receptacle | ||
| Tin | ||
| 260 | ||
| Surface Mount | ||
| 20 | ||
| -40 to 85 °C | ||
| 0.8000 mm | ||
| 8.23 mm | ||
| 11 x 8.23 x 5.37 mm mm | ||
| 5.37 mm | ||
| 11 mm | ||
| 74441 | ||
| Solder | ||
| SFP+ |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8536694040 |
| Schedule B: | 8536694040 |
Factory Lead Time:
