70543-0107

Name: 70543-0107
Brand: Molex
SKU: 70543-0107
Availability: InStock

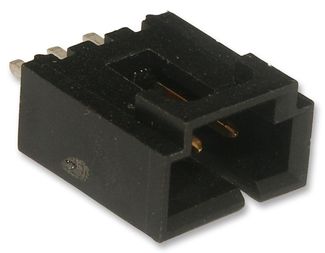

Pin Header, Signal, 2.54 mm, 1 Rows, 3 Contacts, Through Hole Straight, SL 70543 Series

Click image to enlarge

Manufacturer:Molex

Product Category: Connectors, PC Board, Pin & PCB Headers

Avnet Manufacturer Part #: 70543-0107

Secondary Manufacturer Part#: 70543-0107

RoHS 10 Compliant
Tariff Charges

Description

Technical Attributes

Find Similar Parts

	Description	Value
	Connector Body Material	Polyester
	Connector Orientation	Straight
	Contact Material	Phosphor Bronze
	Contact Plating	Gold
	Gender	Header
	Mounting	Through Hole
	No. of Contacts	3
	No. of Rows	1
	Pitch Spacing	2.54 mm
	Product Range	70543
	Termination Method	Solder

ECCN / UNSPSC / COO

Description	Value
Country of Origin:	PROJECTED FEE
ECCN:	EAR99
HTSN:	8536694040
Schedule B:	8536694040

In Stock : 0

Additional inventory

Factory Lead Time: 84 Weeks

Price for: Each

Quantity:

Min:129 Mult:1

USD $:

129+

$1.16415

350+

$1.11072

650+

$1.05

1300+

$1.0101

2496+

$0.95998
