70246-0801

Name: 70246-0801
Brand: Molex
SKU: 70246-0801
Availability: InStock

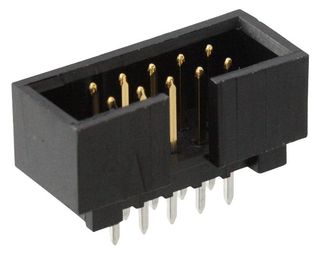

Pin Header, Signal, 2.54 mm, 2 Rows, 8 Contacts, Through Hole Straight, C-Grid 70246 Series

Click image to enlarge

Manufacturer:Molex

Product Category: Connectors, PC Board, Pin & PCB Headers

Avnet Manufacturer Part #: 70246-0801

Secondary Manufacturer Part#: 70246-0801

RoHS 10 Compliant
Tariff Charges

Description

Technical Attributes

Find Similar Parts

	Description	Value
	Connector Body Material	Polyester
	Connector Orientation	Straight
	Contact Plating	Gold
	Pitch Spacing	2.54 mm

ECCN / UNSPSC / COO

Description	Value
Country of Origin:	RECOVERY FEE
ECCN:	EAR99
HTSN:	8536694040
Schedule B:	8536694040

In Stock : 0

Additional inventory

Factory Lead Time: 147 Weeks

Price for: Each

Quantity:

Min:150 Mult:1

USD $:

150+

$0.99998

400+

$0.95205

750+

$0.91

1500+

$0.8736

28800+

$0.77331
