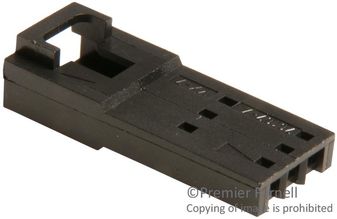

70107-0002
Connector Housing, Single Row, Version A, SL 70107, Plug, 3 Ways, 2.54 mm
Click image to enlarge
Manufacturer:Molex
Product Category:
Connectors, Discrete Housing Connectors
Avnet Manufacturer Part #: 70107-0002
Secondary Manufacturer Part#: 0701070002
-
RoHS 10 Compliant -
Tariff Charges
The 70107-0002 is a 3-circuit 1-row SL™ Wire-to-wire crimp housing, version A, without mounting ears, can be used with 70021 SL™ crimp terminal. This 70107 series crimp housing is made of polyester, mates with 70066 SL™ crimp housing A, G and D (Notes: Version C and H will not mate to the 70107 housing series), 70400 SL™ insulation displacement connector assembly, Version G housing, 70430 SL™ single row receptacle, Version G, suitable for signal and wire-to-wire applications. SL™ (Stackable Linear) products are capable of mating with select C-Grid® and KK® products.
- Positive-lock mating interface - Secures retention with receptacles in high-vibration environments
- Low-profile, stackable housing, header provides design flexibility
- Black colour
- UL94V-0 flammability rating
- Temperature range from -40 to 105°C
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Glass Filled Polyester | ||
| Straight | ||
| Plug | ||
| Black | ||
| 3 A | ||
| Cable Mount | ||
| 3 | ||
| 1 | ||
| -40 to 105 to 105 °C | ||
| 2.54 mm | ||
| 6 mm | ||
| 9.65 x 6 x 24.26 mm | ||
| 24.26 mm | ||
| 9.65 mm | ||
| 70107 | ||
| Wire to Wire Housing | ||
| 600 Vdc|Vac | ||
| 28 to 22 AWG |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8538908180 |
| Schedule B: | 8538907080 |
