67800-5005

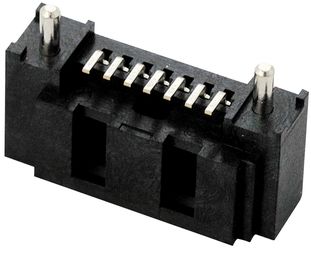

I/O Connector, 7 Contacts, Header, SATA, Surface Mount, 67800, PCB Mount
Click image to enlarge
Manufacturer:Molex
Product Category:
Connectors, I/O Connectors, SATA/eSATA/SAS Connectors
Avnet Manufacturer Part #: 67800-5005
Secondary Manufacturer Part#: 0678005005
-
RoHS 10 Compliant -
Tariff Charges
The 67800-5005 is a 1.27mm pitch 7-way SATA High-speed Header with locking latch and gold-plated brass contact. It features surface mount termination.
- Black colour
- 50-cycle maximum durability (mating)
- Maximum voltage is 15VDC
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Thermoplastic | ||
| Straight | ||
| Brass | ||
| Gold | ||
| Plug | ||
| Tin | ||
| Surface Mount | ||
| -55 to 85 °C | ||
| 1.2700 mm | ||
| 6.45 mm | ||
| 16.9 x 6.45 x 8.4 mm | ||
| 8.4 mm | ||
| 16.9 mm | ||
| Solder |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8536694040 |
| Schedule B: | 8536694040 |
Ships
in 1 bus. day
