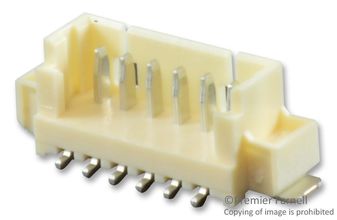

53398-0671
Conn Partial Shrouded Header 6 POS 1.25mm Solder Straight Surface Mount
Click image to enlarge
Manufacturer:Molex
Product Category:
Connectors, PC Board Connectors, Wire to Board Connectors
Avnet Manufacturer Part #: 53398-0671
Secondary Manufacturer Part#: 53398-0671
-
RoHS 10 Compliant -
Tariff Charges
53398-0671 is a 1.25mm pitch, single row, PicoBlade PCB header.
- UL E29179 approval
- 1.0A current - maximum per contact
- 125V maximum voltage
- 94V-0 flammability
- Signal, wire-to-board application
- Phosphor bronze metal, nylon resin material
- Tin plating mating/plating termination
- Vertical orientation
- Surface mount termination interface style
- Operating temperature range from -40°C to +105°C
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Glass Filled Polyamide | ||
| Straight | ||
| Phosphor Bronze | ||
| Matte Tin Over Nickel | ||
| Header | ||
| Natural | ||
| Matte Tin Over Nickel | ||
| 20 mOhm | ||
| 1 A | ||
| Surface Mount | ||
| 6 | ||
| 1 | ||
| -40 to 105 to 85 °C | ||
| 1.25 mm | ||
| 3.7 mm | ||
| 12.65 x 3.7 x 4.7 mm | ||
| 4.7 mm | ||
| 12.65 mm | ||
| 53398 | ||
| Solder | ||
| Partial Shrouded |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8536694040 |
| Schedule B: | 8536694040 |
