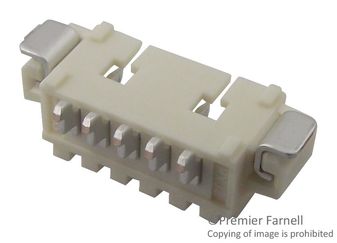

53261-0571
Conn Shrouded Header 5 POS 1.25mm Solder RA SMD
Click image to enlarge
Manufacturer:Molex
Product Category:
Connectors, PC Board Connectors, Wire to Board Connectors
Avnet Manufacturer Part #: 53261-0571
Secondary Manufacturer Part#: 53261-0571
-
RoHS 10 Compliant -
Tariff Charges
53261-0571 is a 1.25mm pitch, right angle PicoBlade™ header mates with 51021 PicoBlade housing and 15134 PicoBlade cable assembly.
- 5 circuits
- 1A, 125V rated
- Lock to mating part and polarized
- 3.40mm mated height
- Fully shrouded
- Operating temperature range from -40°C to +85°C
- Surface mount termination
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Glass Filled Polyamide | ||
| Right Angle | ||
| Phosphor Bronze | ||
| Matte Tin Over Nickel | ||
| Header | ||
| Natural | ||
| Matte Tin Over Nickel | ||
| 20 mOhm | ||
| 1 A | ||
| Surface Mount | ||
| 5 | ||
| 1 | ||
| -40 to 105 to 85 °C | ||
| 1.25 mm | ||
| 5.2 mm | ||
| 11.4 x 5.2 x 3.4 mm | ||
| 3.4 mm | ||
| 11.4 mm | ||
| 53261 | ||
| Solder | ||
| Shrouded |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8536694040 |
| Schedule B: | 8536694040 |
